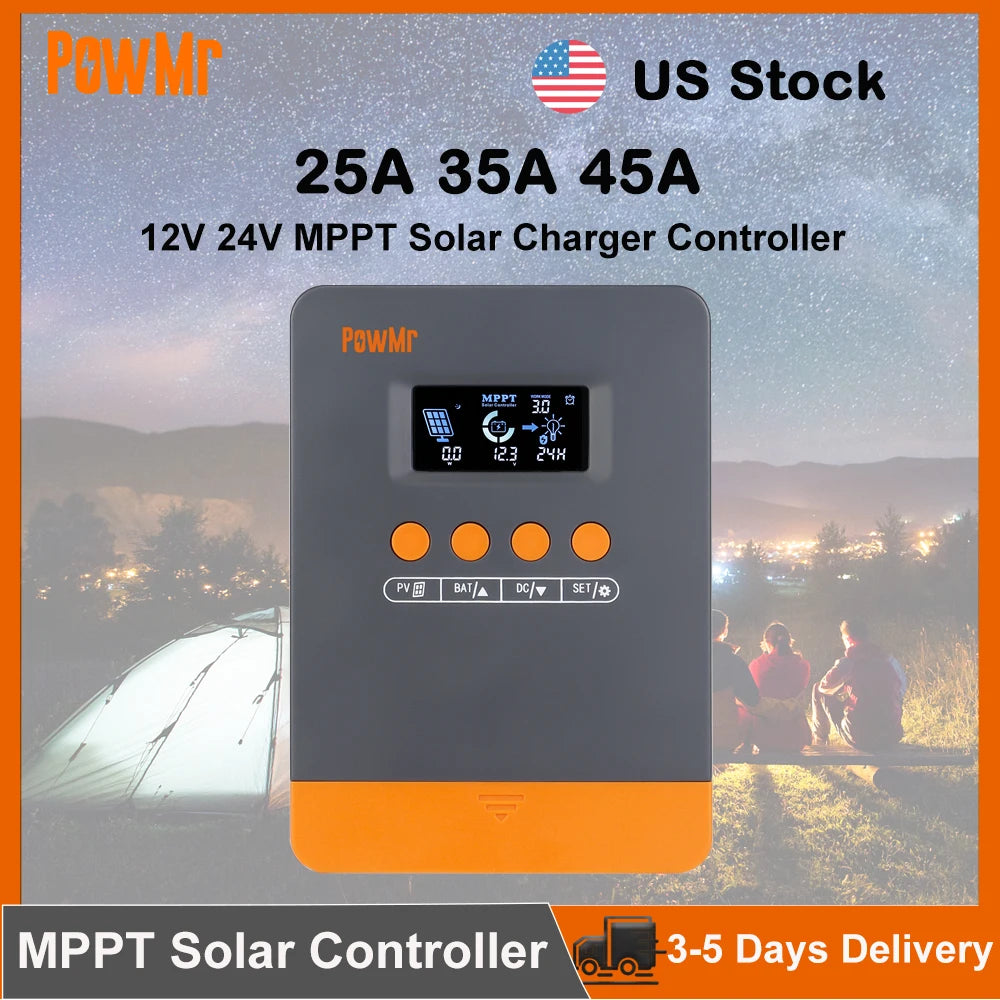

PowMr MPPT Solar Charge Controller Supports 12V And 24V Batteries
PowMr MPPT Solar Charge Controller Supports 12V And 24V Batteries
Regular price
$86.99 USD
Regular price
$0.00 USD
Sale price
$86.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Get more usable power from your solar array every day with intelligent voltage matching and automatic detection.
- MPPT Technology You capture afternoon sun faster because it continuously follows panel voltage above ninety-nine percent efficiency.
- Adaptive Boost Cycle You extend your bank lifespan by letting the unit monitor response before locking charge curves.

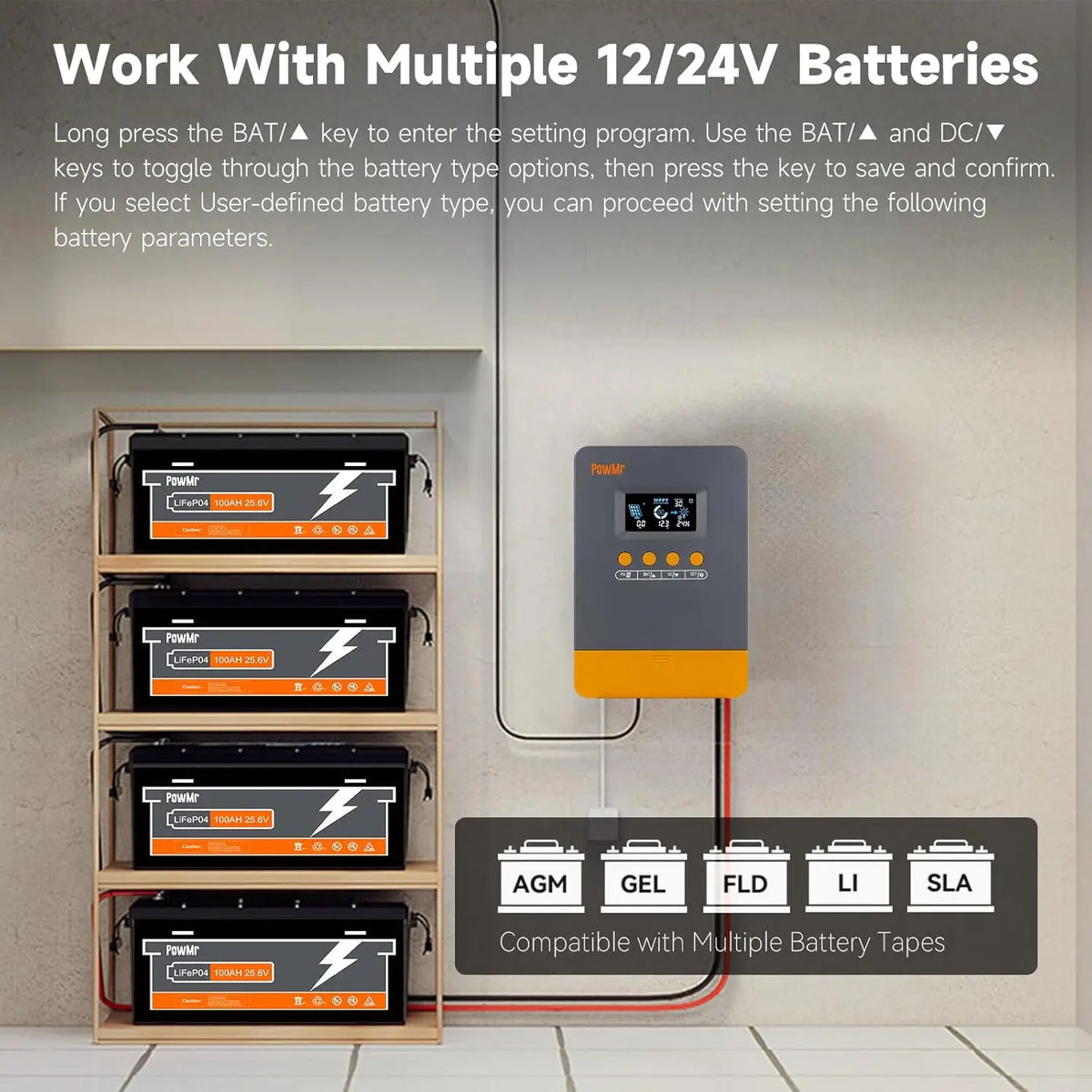

- Mixed Chemistry Ready You wire lithium or flooded modules anywhere since it smoothly supports twelve or twenty-four volt grids.
- Persistent Performance You trust your off-grid cabins through extreme swings while it drains barely any idle current.
Snap it between your frame and energy core to enjoy stable daytime collection and dependable night-time reserves.
Models |
25A |
35A |
45A |
Solar Input Parameters | |||
Max. PV Open-Circuit Voltage |
100V |
||
|
Max. Input Power:
For 12V System
For 24V System
|
300W
600W
|
420W
840W
|
540W
1080W
|
|
Input Voltage Range:
For 12V System
For 24V System
|
<60V
<60V
|
<80V
<80V
|
<100V
<100V
|
Battery Charging Parameters | |||
Charging Technology |
MPPT |
||
Charging Algorithm |
3 Stages |
||
Nominal System Voltage |
12V/24V |
||
Battery Voltage Range |
9~30V |
||
Rated Charging Current |
25A |
35A |
45A |
Conversion Efficiency |
≤98% |
||
Max. Power Point Tracking Efficiency |
>99% |
||
Temperature Compensation |
-3mV/℃/2V (default) |
||
Self-Consumption |
44mA/12V; 26mA/24V |
||
DC Output Parameters | |||
Rated DC Output Current |
15A |
20A |
25A |
General Parameters | |||
IP Class |
IP32 |
||
Operating Temperature Range |
-35℃~+45℃ |
||
Humidity Range |
≤95% Non-condensing |
||
Altitude |
<3000m |
||
Dimensions |
160x115x51mm |
195x135x65mm |
195x135x65mm |
