You capture maximum solar energy immediately because the highly efficient tracker syncs perfectly to your 12, 24, 36, or 48 volt battery banks.
-
Adaptive Boost Charging Watches your battery’s real-time response to finish every cycle fully while stopping early if overcharge looks likely.
-
Configurable Current Limits Lets you set charge rates between two and sixty amps so delicate battery chemistry stays completely safe.
-

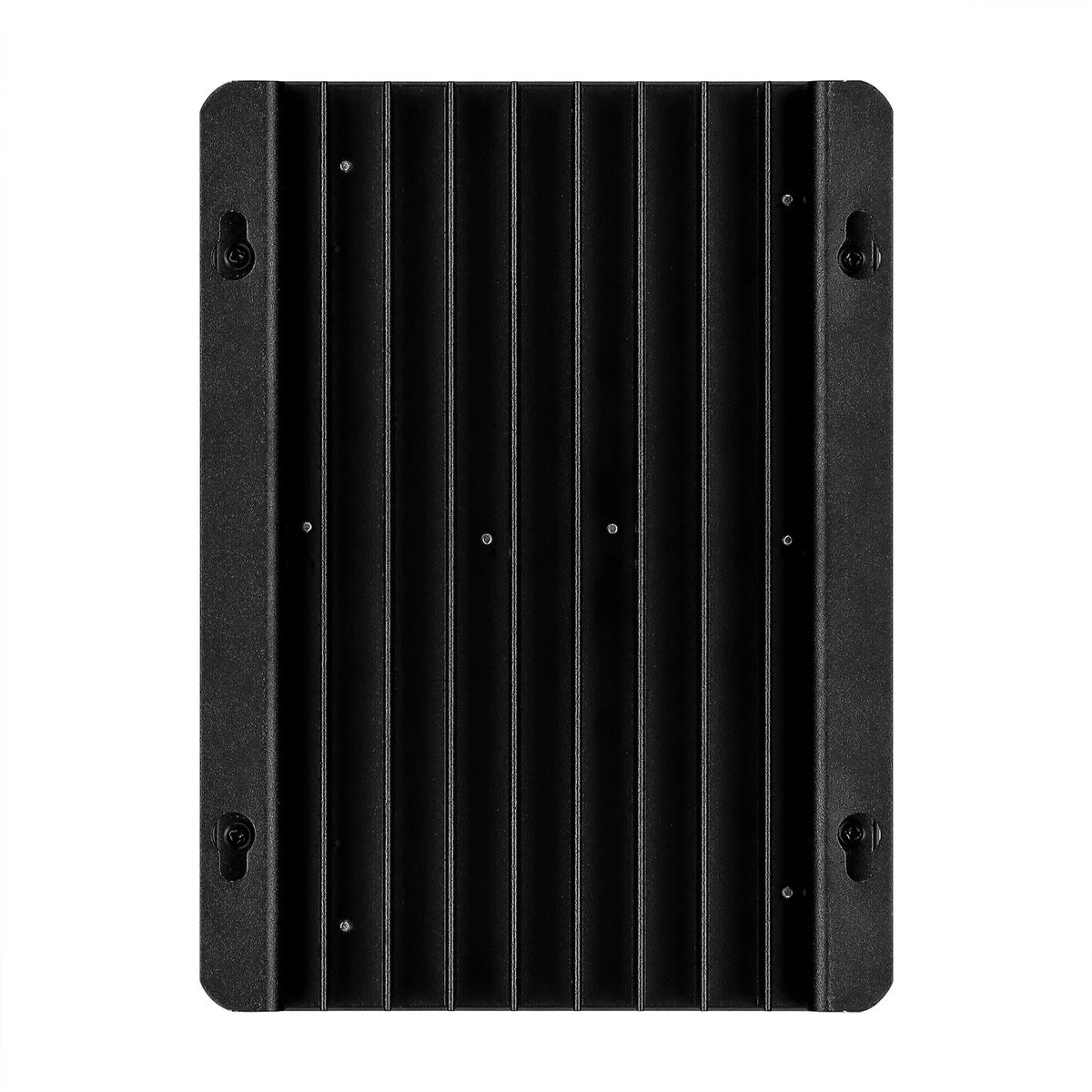

Dual Cooling System Pairs an active internal fan with a dedicated exterior plate to hold operating temperatures well below harmful peaks.
-

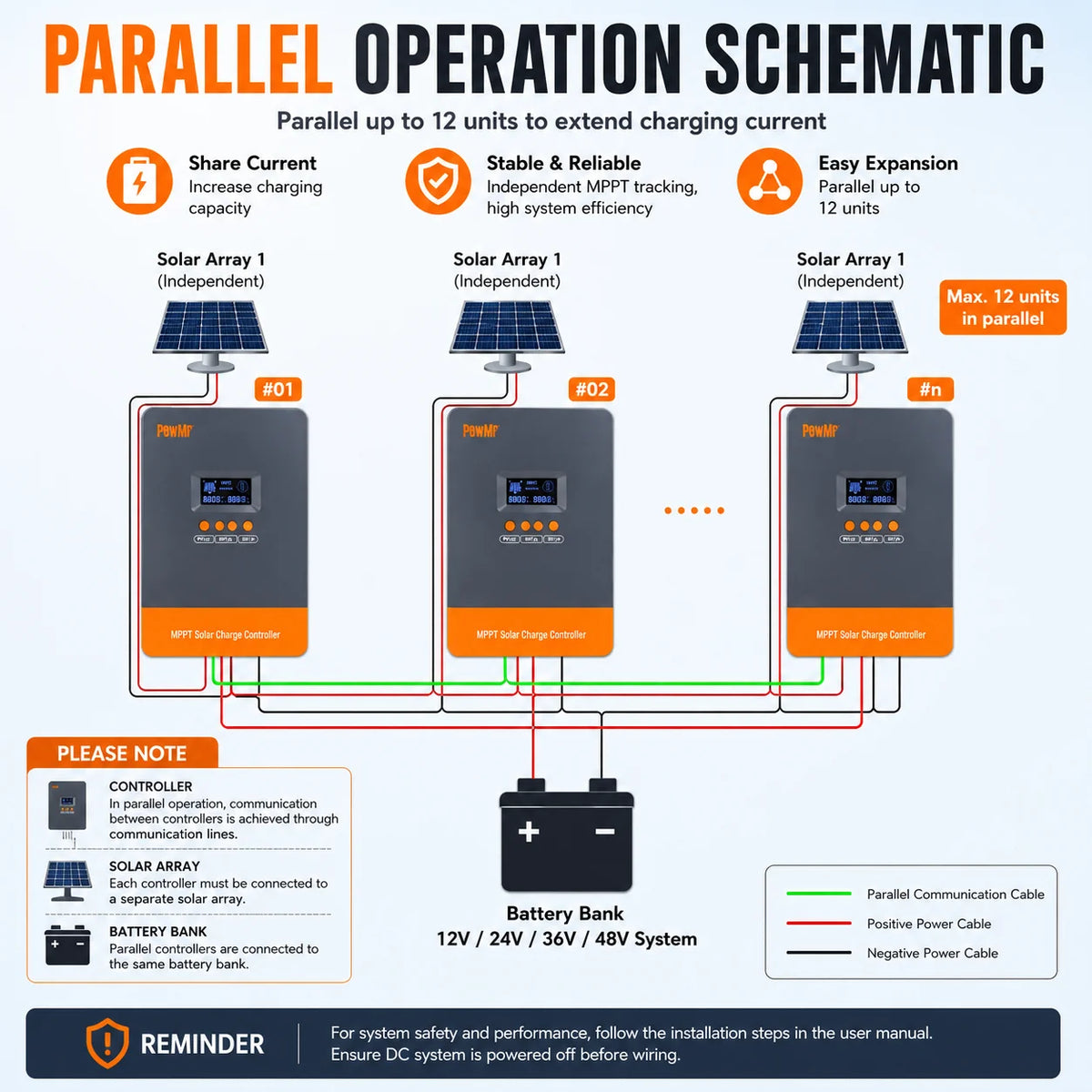

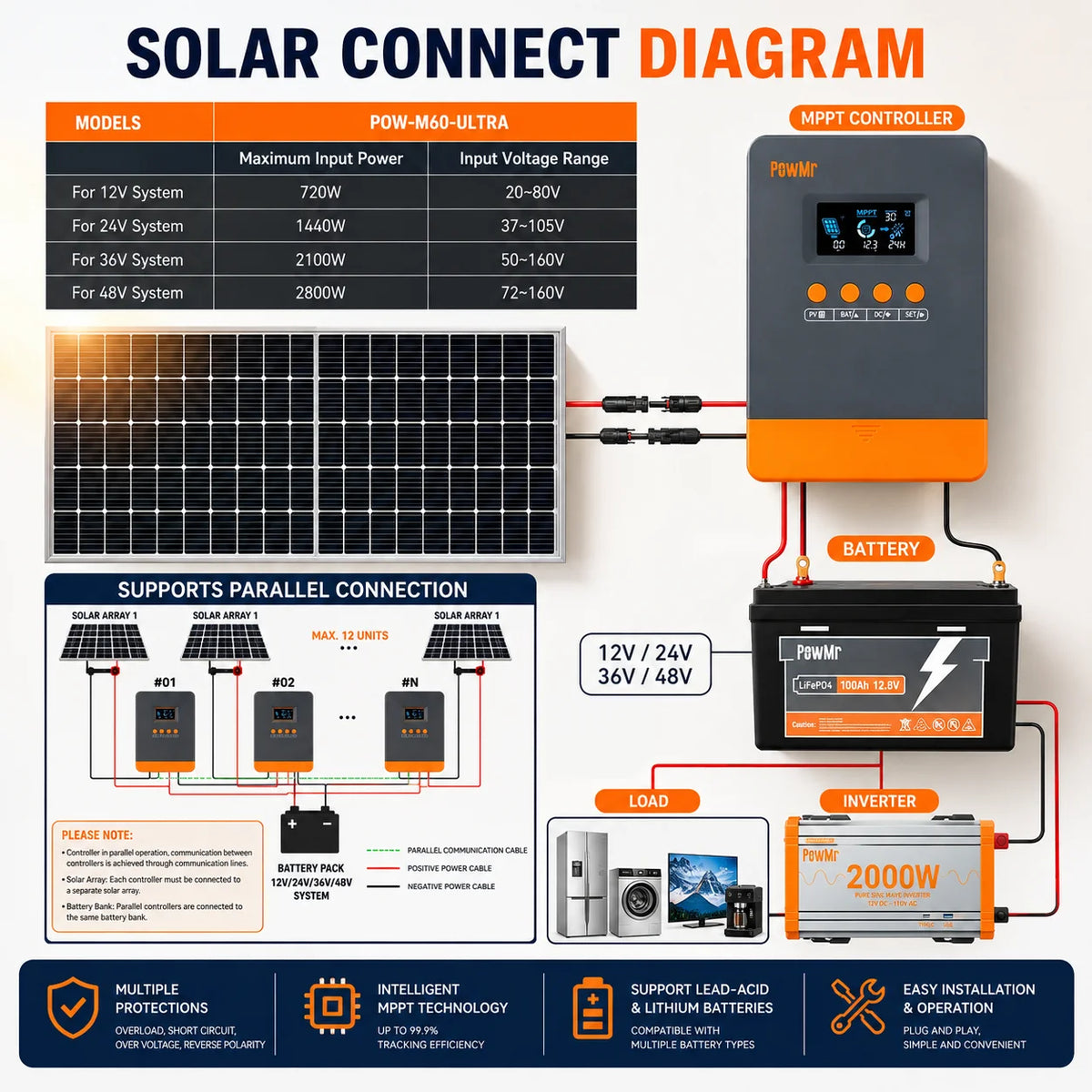

Parallel Ready Wiring Links up to twelve units seamlessly on larger setups where your remote cabin truly needs extra winter reserve.
Model |
POW-M60-ULTRA |
Solar Input Parameters |
Max. Input Power: |
For 12V System |
720W |
For 24V System |
1440W |
For 36V System |
2100W |
For 48V System |
2800W |
Input Voltage Range: |
For 12V System |
20V~80V |
For 24V System |
37V~105V |
For 36V System |
50V~160V |
For 48V System |
72V~160V |
Battery Charging Parameters |
Charging Technology |
MPPT |
Charging Algorithm |
3 Stages |
Nominal System Voltage |
12V/24/36V/48V |
Battery Voltage Range |
9~60V |
Rated Charging Current |
60A |
Conversion Efficiency |
≥ 98. 1% |
Max. Power Point Tracking Efficiency |
>99% |
Self-Consumption |
0.7W-1.2W |
DC Output Parameters |
Rated DC Output Current |
25A |
General Parameters |
IP Class |
IP32 |
Operating Temperature Range |
-35℃ ~+45℃ |
Humidity Range |
≤ 95% Non-condensing |
Altitude |
<3000m |
Dimensions |
221x163x77mm /8.7x6.42x3.03in |
Net Weight |
1442g / 3.18lb |
