PowMr Mppt 60A Solar Charge Controller For Lithium Batteries
PowMr Mppt 60A Solar Charge Controller For Lithium Batteries
Couldn't load pickup availability
You keep your essential gear powered through long outages because this controller precisely balances variable sunlight with steady battery charging.
- Automatic Voltage Detection The built-in sensor quickly identifies twelve through forty-eight volt banks so you save morning setup time.
- Persistent MPPT Tracking The dedicated algorithm extracts maximum sun energy while quietly lowering operating temperatures.

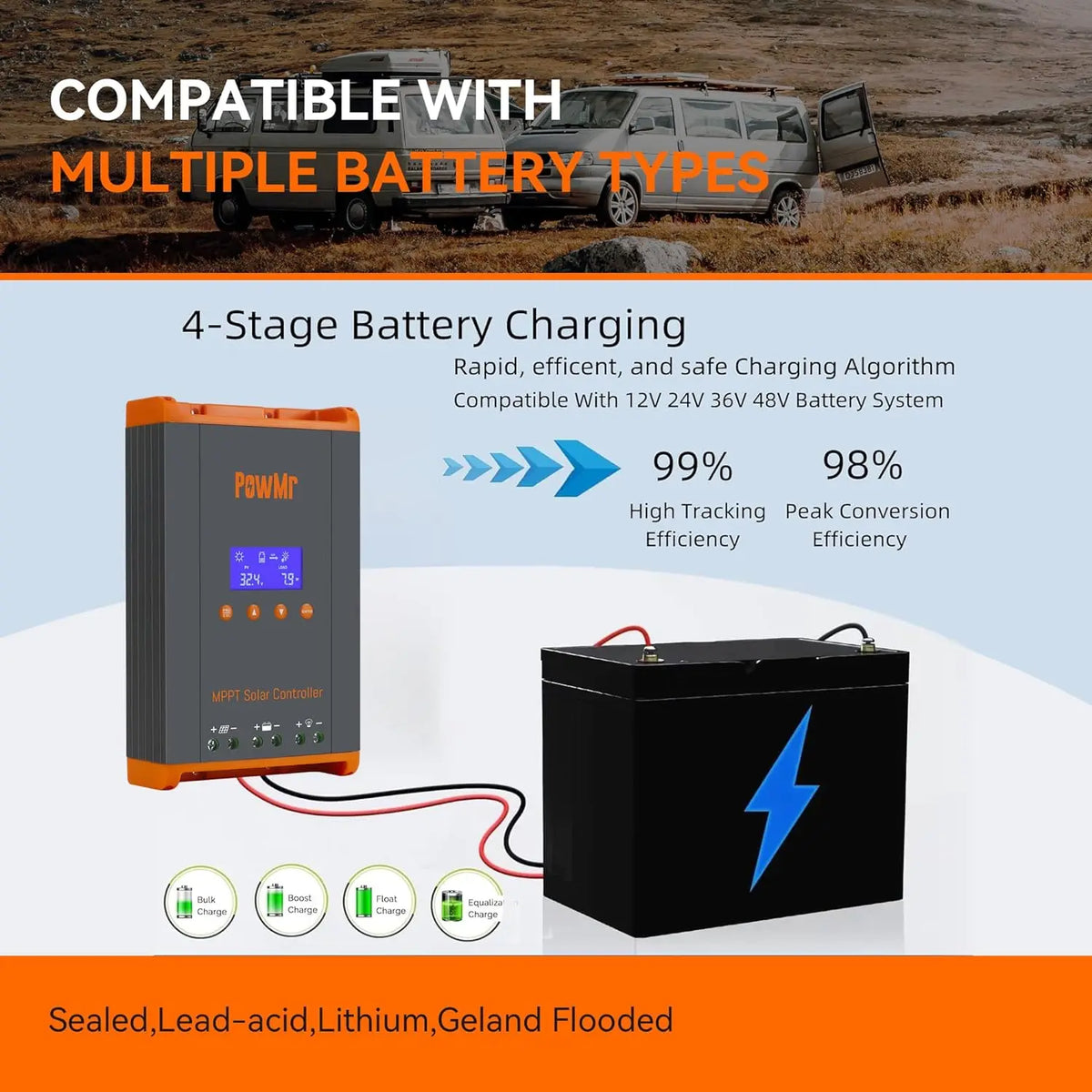

- Broad Chemistry Match You safely cycle lithium, LiFePO4, gel, or flooded packs using the same preset profiles.
- Modular Expansion You connect up to twelve units together to safely scale your workshop power reserve.
Install it inside your utility cabinet and let the smart algorithms handle the heavy lifting while you enjoy uninterrupted comfort.
Models |
HHJ60-PRO |
Solar Input Parameters | |
Max. Solar Array Open-Circuit Voltage |
160V |
Maximum Input Power |
For 12V System(720W)
For 24V System(1440W)
For 36V System(2100W)
For 48V System(2800W)
|
Input Voltage Range |
For 12V System(20V~80V)
For 24V System(37V~105V)
For 36V System(50V~160V)
For 48V System(72V~160V)
|
Battery Charging Parameters | |
Charging Technology |
MPPT |
Charging Algorithm |
3 stages |
Battery Voltage Auto-Detection |
For 12V System(DC9V~DC15V)
For 24V System(DC18V~DC29V)
For 36V System(DC30V~DC39V)
For 48V System(DC40V~DC60V)
|
Overcharge Protection Voltage |
60V |
Charging Limit Current |
61A |
Maximum Efficiency |
≥98. 1% |
Solar Utilization Rate |
≥99% |
Load Terminal Output | |
Rated Output Current |
6A |
Maximum DC Output Current |
8A |
Protection | |
Temperature Protection |
75℃/167 ℉ |
Fan Start Temperature |
>45℃/104℉ |
Fan Shutdown Temperature |
<40℃/95℉ |
General Specification | |

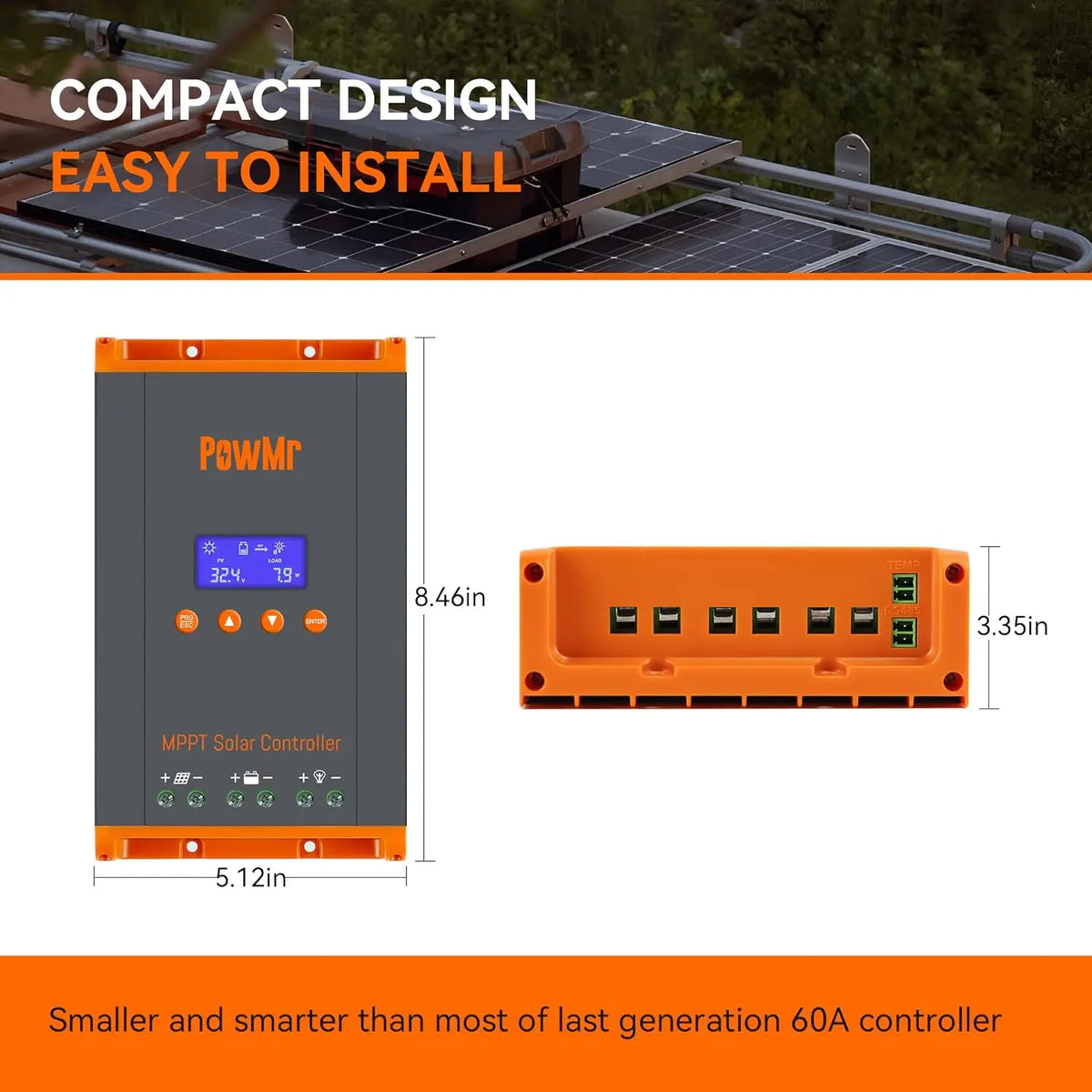

Dimensions |
215x130x85mm /8.46x5.12x3.35in |
Net Weight |
990g / 2.18lb |
Electromagnetic Compatibility |
EN61000, EN55022, EN55024 |
Protection Level |
IP21 |
Operating Temperature |
-20℃ ~ +55℃ / -4℉ ~ 131℉ |
Storage Temperature |
-40℃ ~ +75℃ / -40℉ ~ 167℉ |
